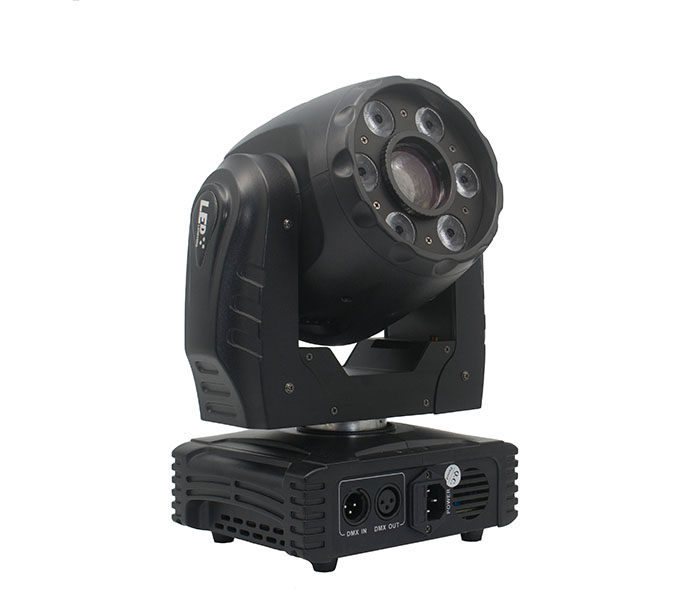

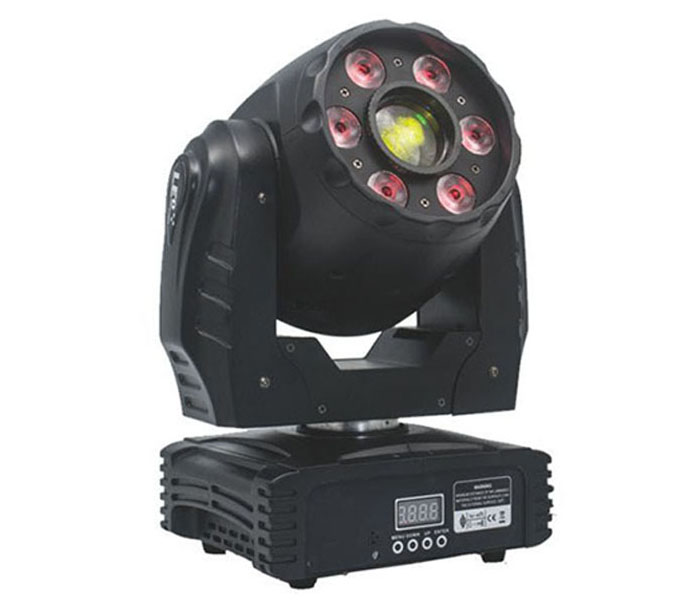

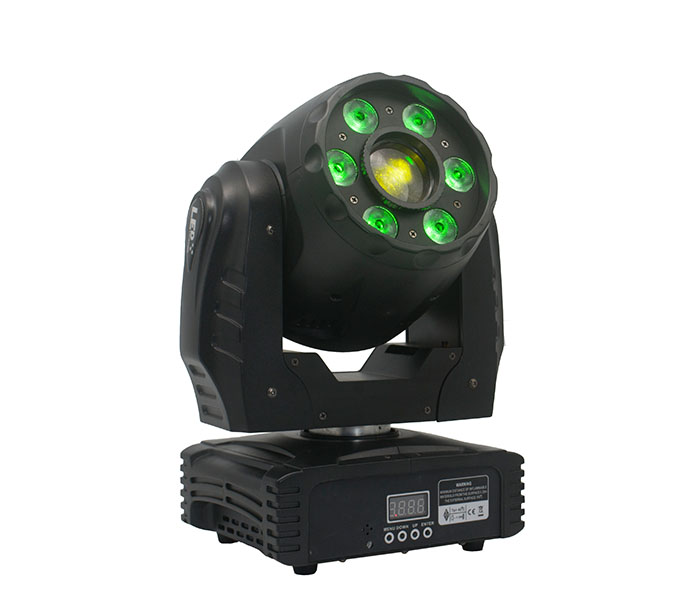

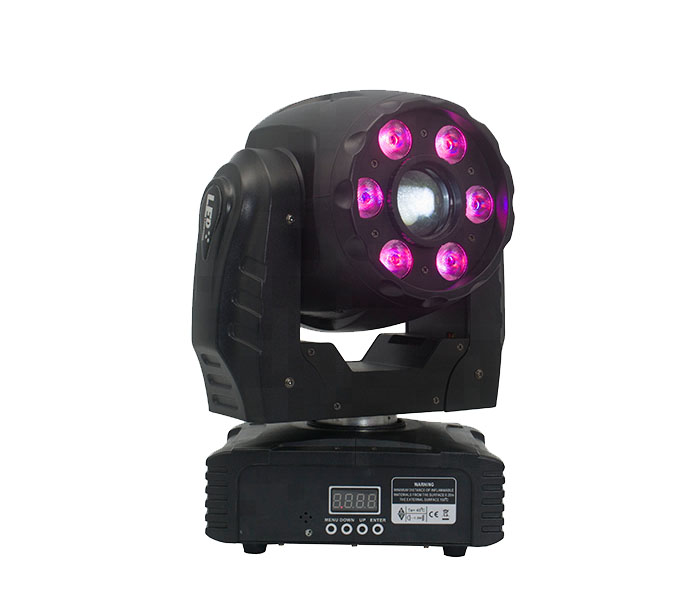

30W LED SPOT+6X8W WASH MOVING HEAD

Contact: * Company: MSN/skype: Subject: Tel: Fax: E-mail: * Website: Content: * Code: *(marked *should be filled)

Technical Specifications

Input power:AC100-240V 50/60 Hz

Power consumption:95 watt(max)

Power connection:IEC-10A

Connection:3pin-XLR male/female

Output LUX :Max 1700 LUX at 3 meters

LED:1PCS 30W white LED Engine(Spot)+6 PCS 8W RGBW(Wash)

DMX channel:5/19channels

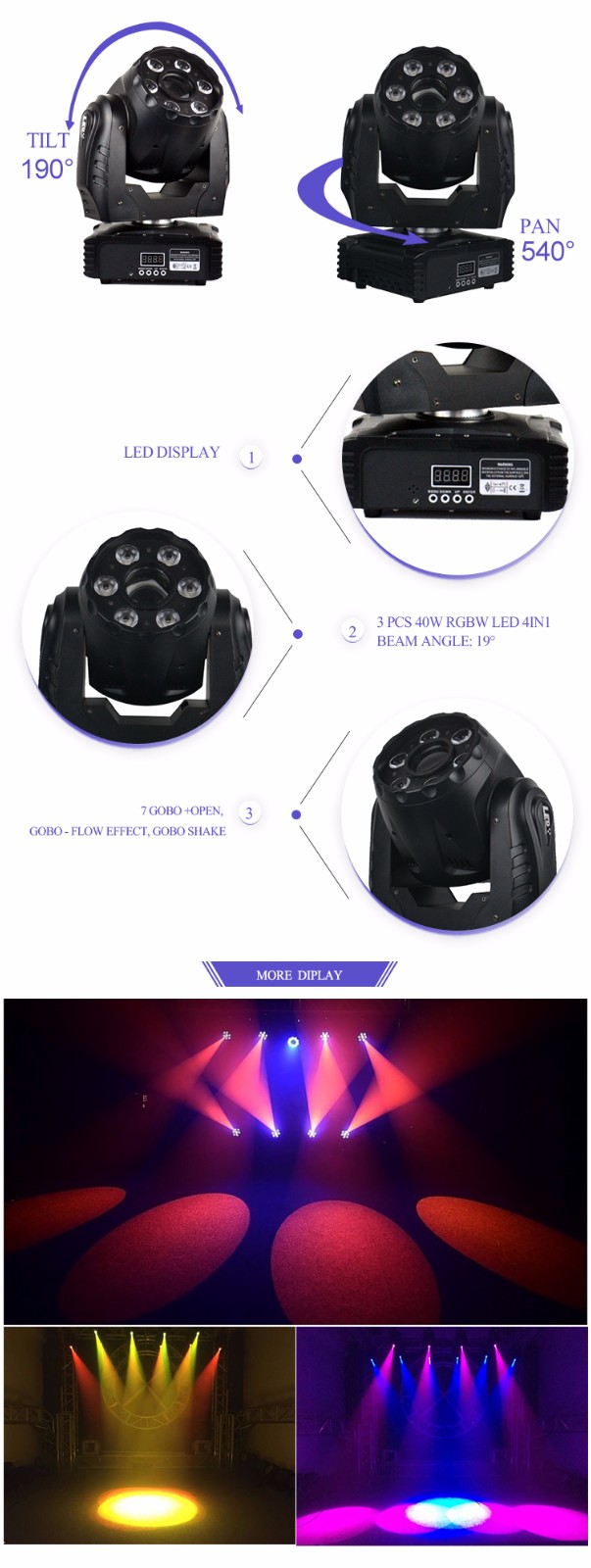

Movement:Pan/Tilt:X axis 540°, Y axis 190°

Control mode:DMX512/Master-Slave/Auto run/sound

Display: LED display

Color wheel: 7 color + open ,rainbow -flow effect

Gobo wheel: 7 gobo +open, gobo - flow effect, gobo shake

8 internal program , sound mode can control by DXM 512

Beam angle:19°

IP-Rating:IP20

G.W: 5KG

Packing size :

33*26*26cm (1pcs/ctn)

51*36*28cm (2pcs/ctn)
