l Input voltage: AC100-240V, 50/60Hz
l Rated power: 1050W
l Light source: 1000W LED module
l LED life: 20,000 hours
l Color temperature: 6500K
l Caliber: 150mm Frontal lens for greater performance
l Color rendering index: Standard mode Ra>75, high CRI mode Ra>90
l Luminous flux: 32000LM
l Signal interface: three-pin XLR (five-pin XLR optional)
l Control mode: DMX512, RDM, Auto Mode, master-slave, Sound activation
l Channel mode: 36CHs
l Display system: 2.7-inch touch LCD display, Chinese and English display, 180-degree rotation
l Fixed color: 6 colors + open position
l Color mixing system: independent CMY color mixing system
l Color temperature adjustment: independent CTO 2800K-6500K linear adjustment
l Prisms: Rotating 3-faced prism+6-faced linear prism, two prisms can be overlaid
l Effect wheel: dynamic effects such as stunning simulated dynamic flames, gurgling water, etc.
l Fixed Gobo wheel: 11 plug-in fixed gobos with an outer diameter of 25.4mm+open position
l Rotating gobo Wheel: 7 gobos (pluggable), outer diameter 26.9mm, effective diameter 16.5mm, thickness 1.1mm+Open position
l Framing system: 4 Individually positionable Shutter Blades, each piece can be closed separately and can be rotated +/- 90°
l Frost system: 0~100% linear atomization
l Iris system: 6%~100% smooth adjustment

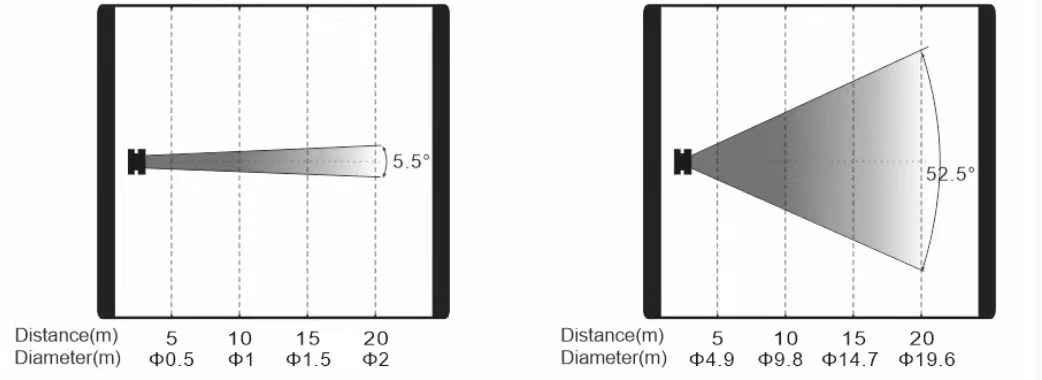

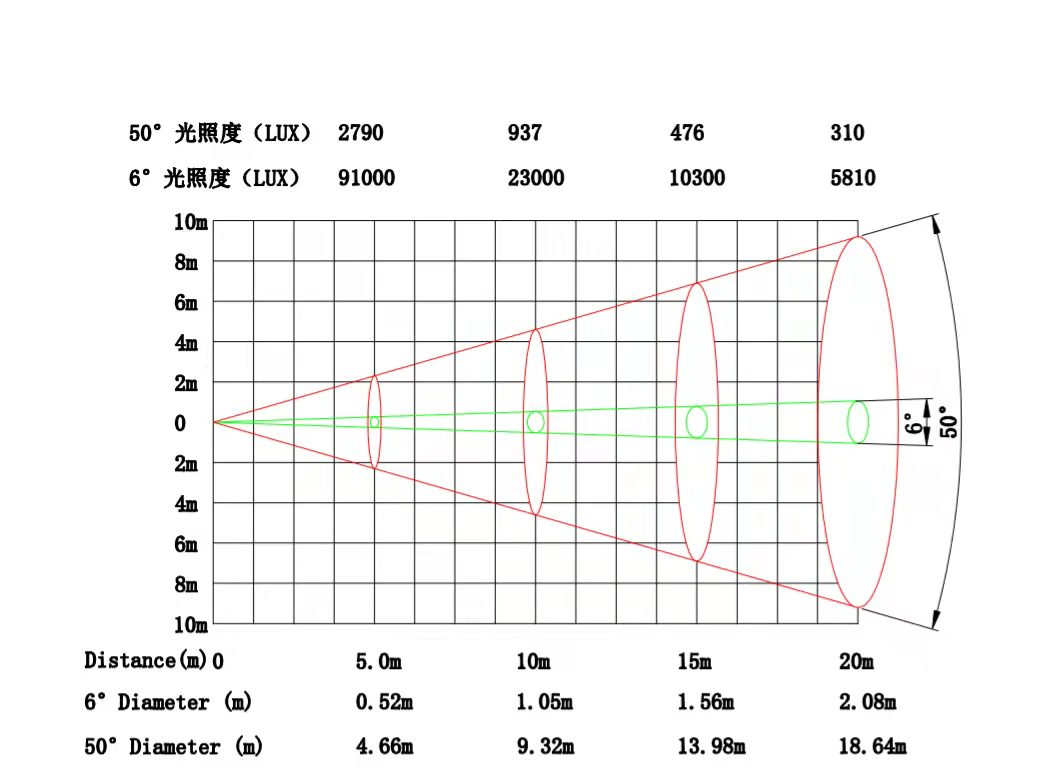

l Beam Aperture: 5.5°~60° fast motorized linear zoom
l Dimming system: 0-100% linear adjustment
l Strobe system: the highest frequency can reach 25Hz, and random strobe and pulse strobe can be selected
l Pan: 540° (16 bit precision scanning)
l Tilt: 270° (16 bit precision scanning)
l Pan/Tilt: Five-phase motor with magnetic encoding positioning function
l Protection rate: IP20
l Working environment: 0-45℃
l Product size: 510*345*800(mm)
l Carton size: 730*690*590 (mm)
l Product net weight: 43KG
l Product gross weight: 51.5KG
l Product appearance: flame retardant, high temperature resistance, folding clamp

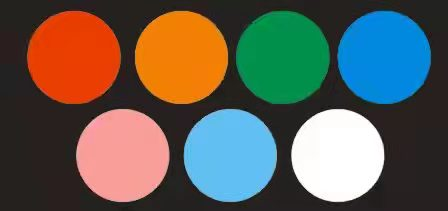

color wheel
fix gobo wheel

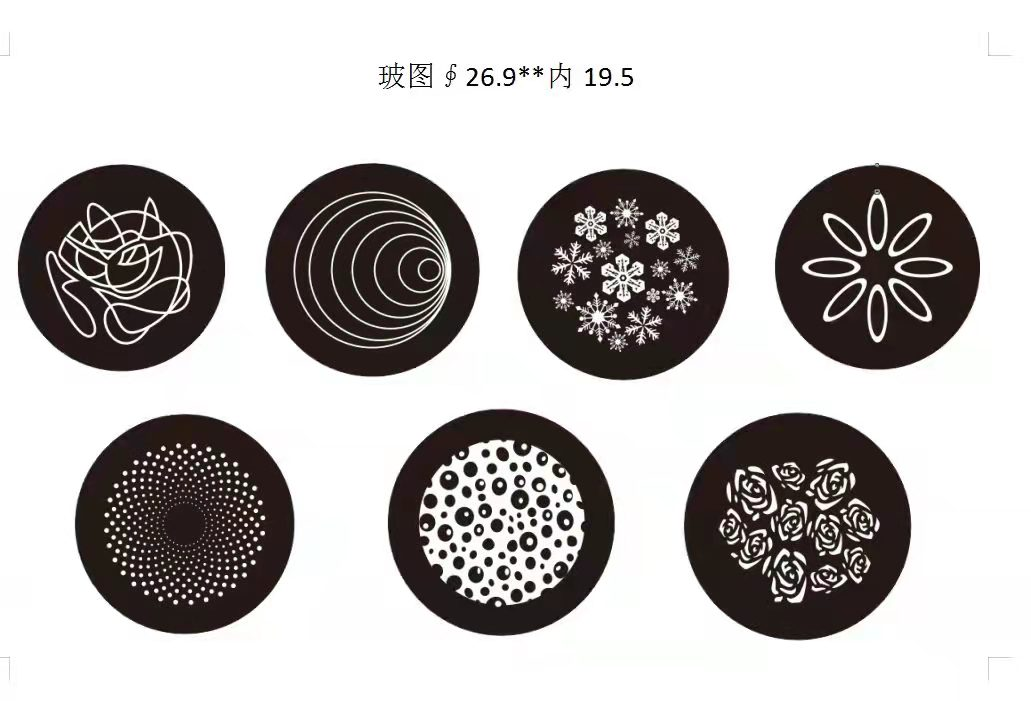

glass gobo wheel
