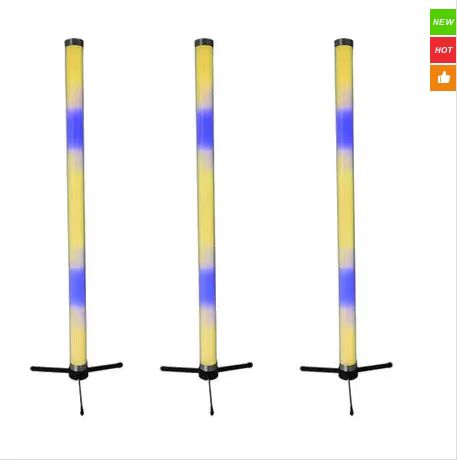

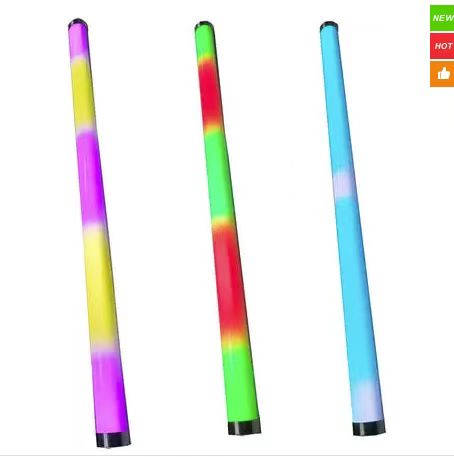

wireless battery led pixel tube

Contact: *
Company: MSN/skype:
Subject:
Tel: Fax:
E-mail: * Website:
Content: *
Code: *(marked *should be filled)

Description

VIDEO:

Optical System


Input power:AC100-240V 50/60 Hz

Power consumption :50 W



Specification

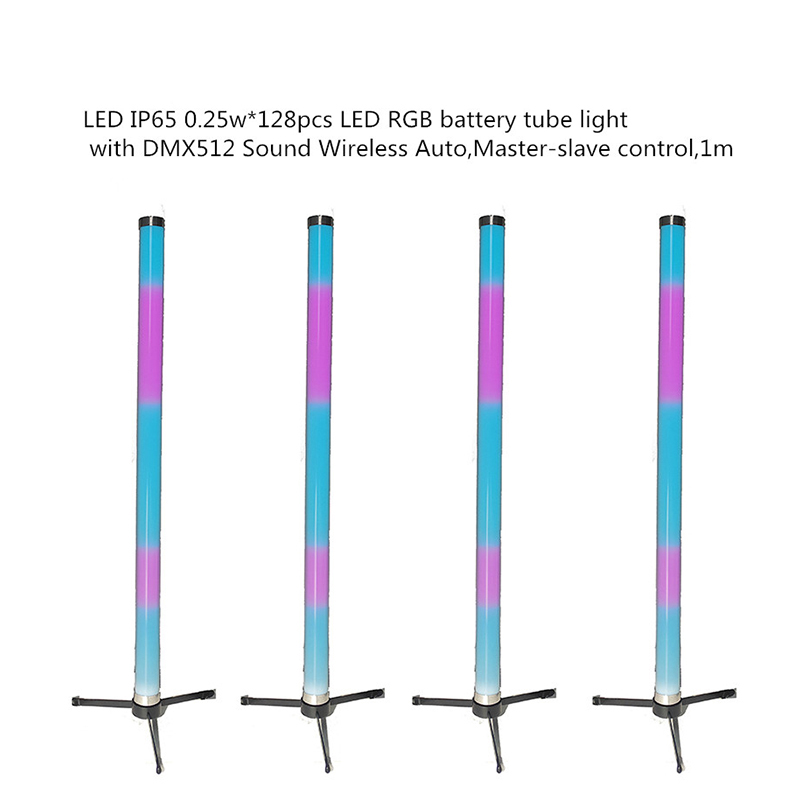

128*0.25W LED RGB,16 PIXEL zone control

Control mode:Auto,Sound,DMX,wireless   DMX,Remote

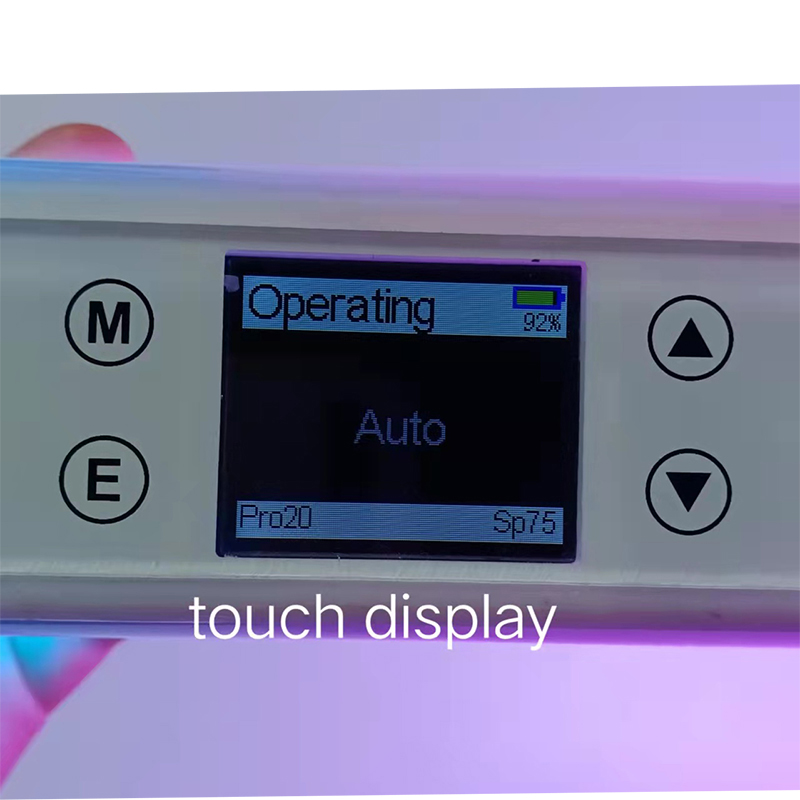

Display: Touch display

IP Rate:IP65

Tube material: PMMA



Electrical /THERMAL

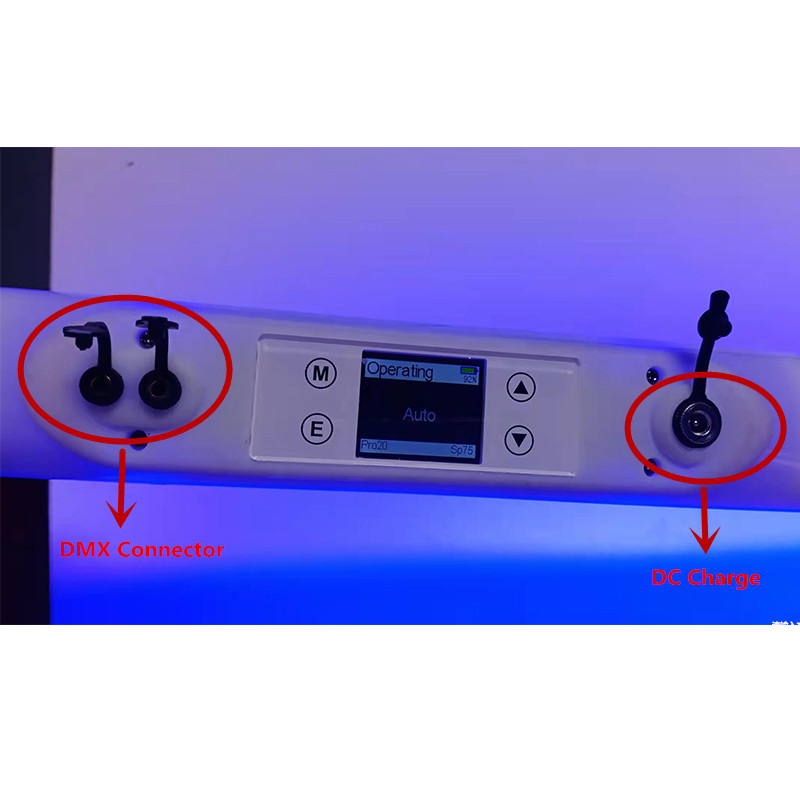

Power connector: DC Charging Port

DMX in/out:  3-pin XLR

-5°C-45 °C (23°F-104 °F)



Control and Programming

DMX Protocol modes: 3

Control channels: 7/20/52CH(RGB)

Control channels: 8/20/68CH(RGBW)



Mechanical Specification

Length: 1.038M

Diameter: 55MM

Weight: 2.2kg



Battery Parameter

Battery type: Lithium Ion

Battery charge time: 4hour

Battery life: (all on) 7-8hours, (single Color) 20hours

Battery capacity:8000mAH


Package

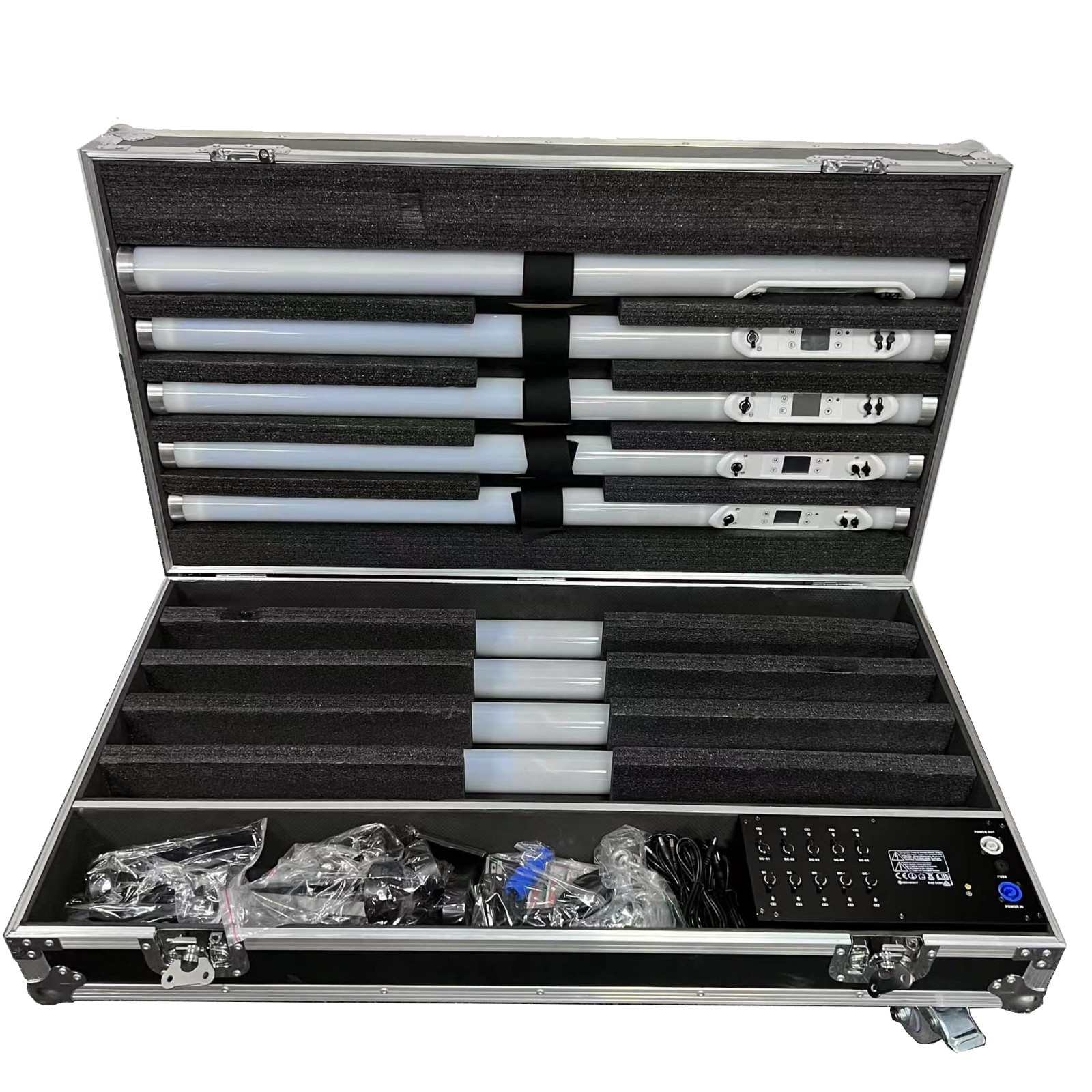

10in1 Flycase Size: 1289*603*386MM,, weight: 60KG

Carton size: 1070*160*140MM,weight: 4.5KG( 1pcs in one carton)



Approvals Certificate

CE Compliant

ROSH Compliant

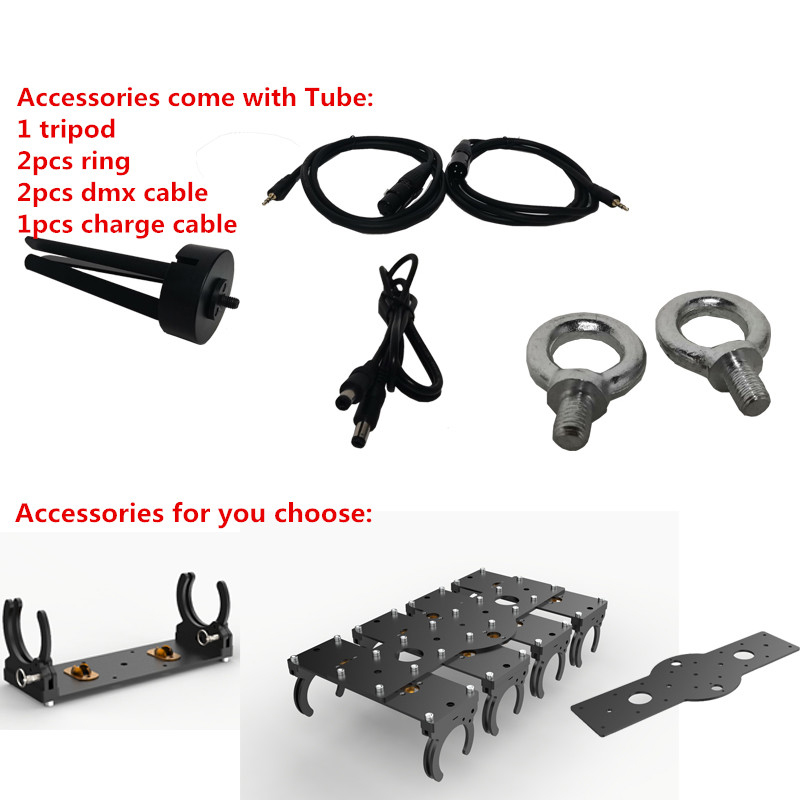

Included items

User Manual

Power Cable

DMX Cable

Tripods

M8 ring
